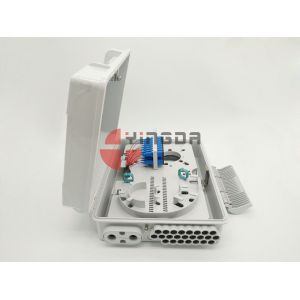

24 Ports Fiber Access Terminal Box with SC/UPC adapter Pigtails, 1*8 1*16 Splitter Distribution Box White
YINGDA fiber access termination box is able to hold up to 24 subscribers. It is used as a termination
point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,
splitting, distribution, storage and cable connection in one solid protection box.
Features
Waterproof design and with IP-66 protection level
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radiuscontrol more than 40mm
Suitable for the fusion splice or mechanical splice
1*16 splitter can be installed as an option
Efficient cable management
24 ports cable entrance for drop cable
Configuration
| Dimension | Max capacity | Weight | Color | Material | |
| 340*250*110 | SC 24 ports | PLC 1X16 (SC) | 1.5kgs | Black/white | PC+aBS |
2 Ports Cable Entry, 24 Ports Out Cable Wall Mount / Pole Mount

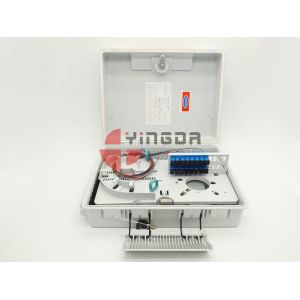

Upper layer for adapter and fiber storage Down layer for fiber fusion, splitter and storage
24pcs SC adaptr panel fiber management with wire rings
Standard accessories
Splice cassette, cable management tool, installation nuts and bolts, protection sleeve, hose clamp,rubber seal for cable entrance
Optional accessories
Pole ring, extra lock and key
